Structured RAG
How to Use Structured RAG in AI21 Studio
Before you start
- Make sure you have access to your Workspace.
- You can either use documents that already exist in your File Library or upload new ones.
(PDF, DOCX, TXT, HTML, or Markdown).
Create a Schema
Step 1: Open the File Library
Show Content
Show Content

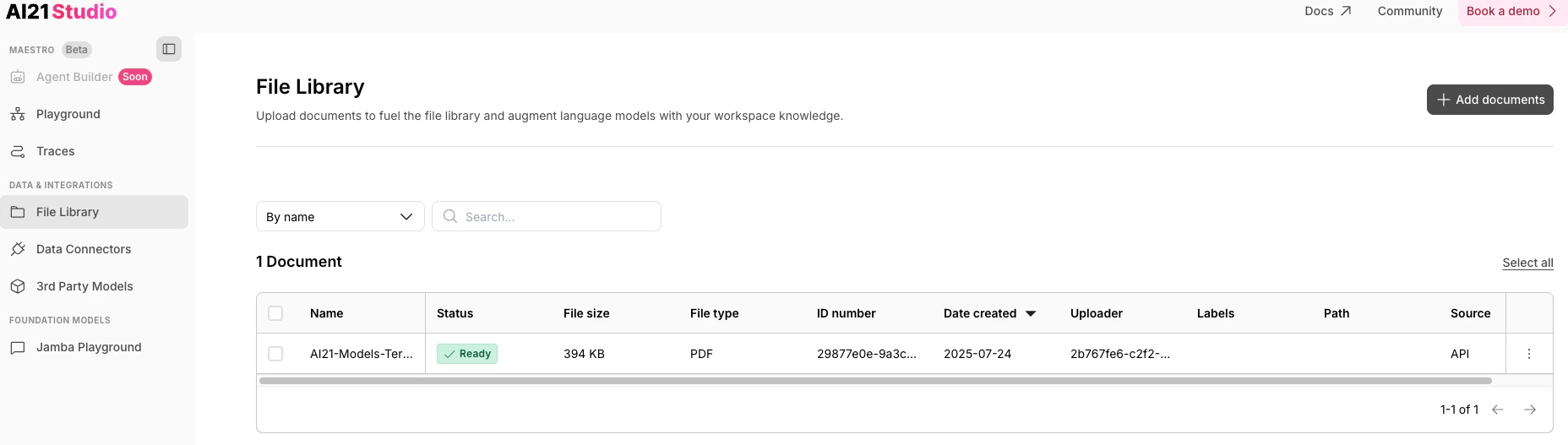

Navigate to File Library from the left-hand menu in AI21 Studio.
Step 2: Choose one of two ways to create a schema
Show Content
Show Content
Option A: Create from files already in your File Library
-

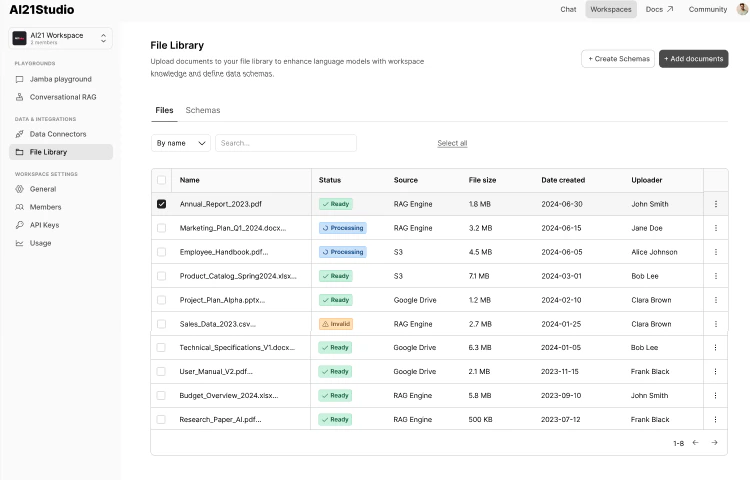

In File Library , select the documents you want to use. You can choose specific files by checking the box next to the file name. To create a schema, select between 1 and 5 files.
-

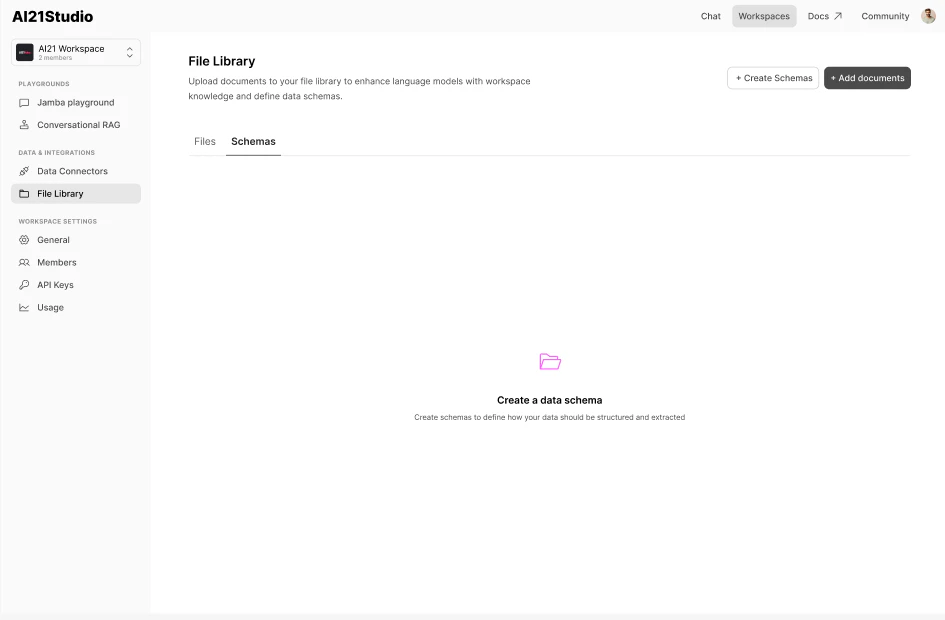

In File Library, click on the Schemas tab.
-

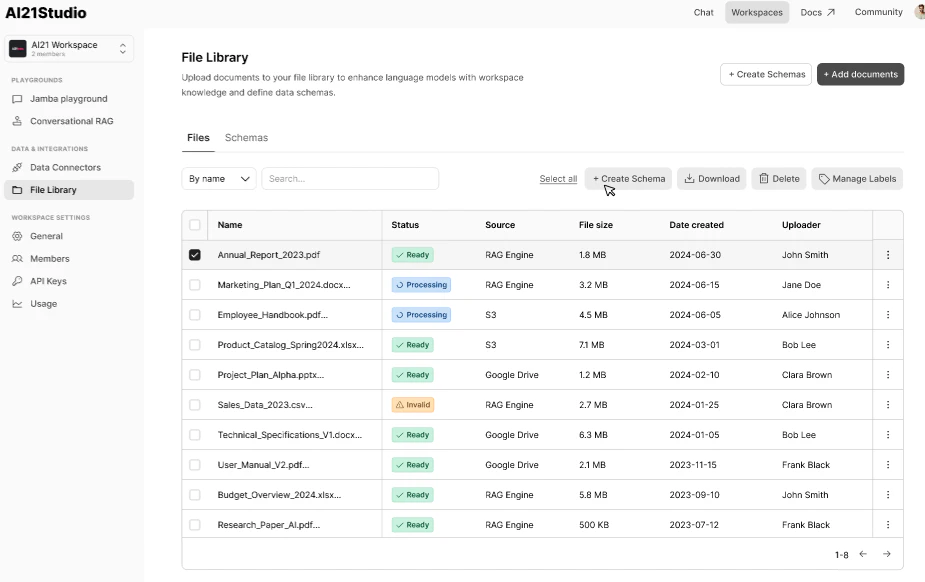

Click the “Create Schema” button in the top-right corner.
-

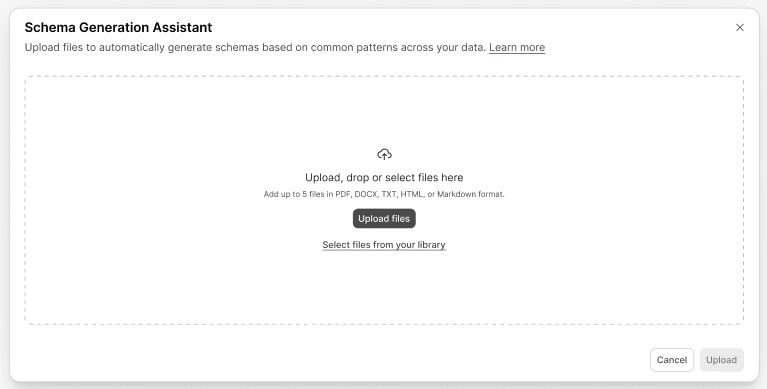

Upload up to 5 files in one of these formats: PDF, DOCX, TXT, HTML or Markdown. Alternatively, select files from your library.

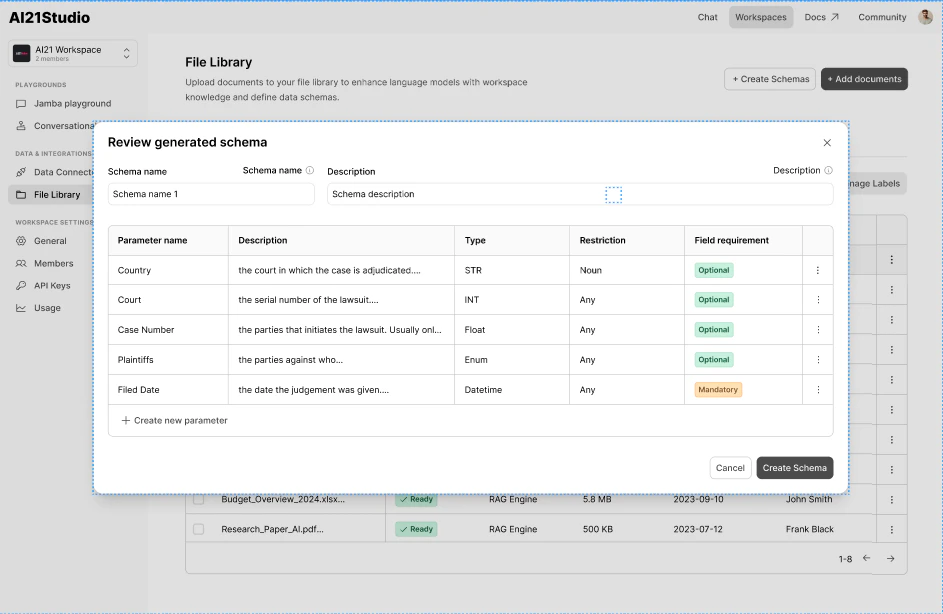

Step 3: Review the generated schema
Show Content
Show Content
Once the files are uploaded or selected, AI21 Maestro automatically generates a schema based on common patterns in your data.
Step 4 (Optional): Edit the schema before saving it
Show Content
Show Content

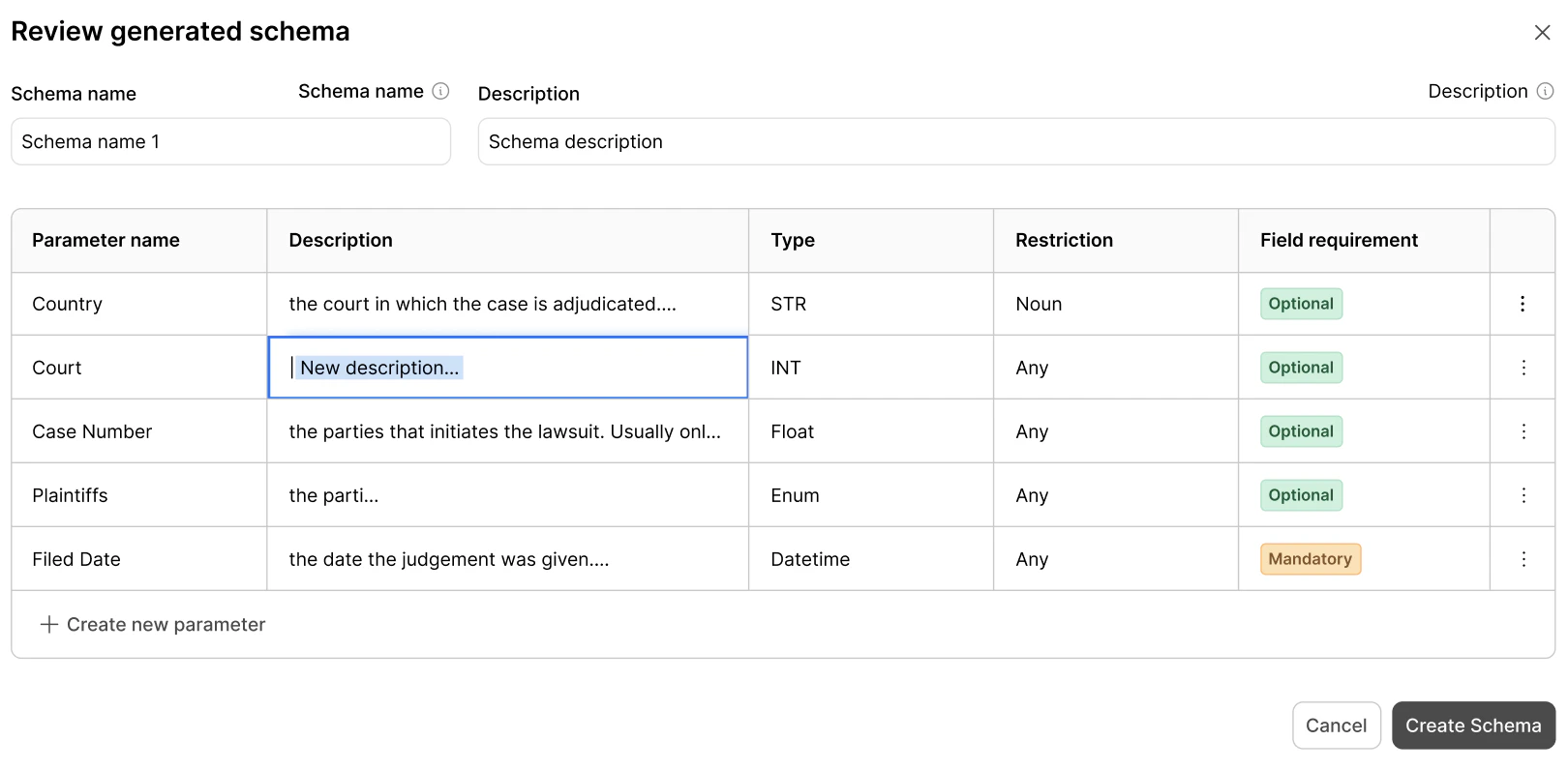

In case you want to edit the content in the table you can:
- Click any cell to edit its value (e.g., rename a parameter, refine a description, set field requirements, adjust type and restriction if relevant).
-
Use + Create new parameter to add fields.
Step 5: Save the schema
Show Content
Show Content
After reviewing and confirming the schema, click Save Schema..png?fit=max&auto=format&n=8WEteHv7aTOfZ7fY&q=85&s=a2430662a443d05426e5264f87c3d95a)
Step 6: Manage your schemas
Show Content
Show Content

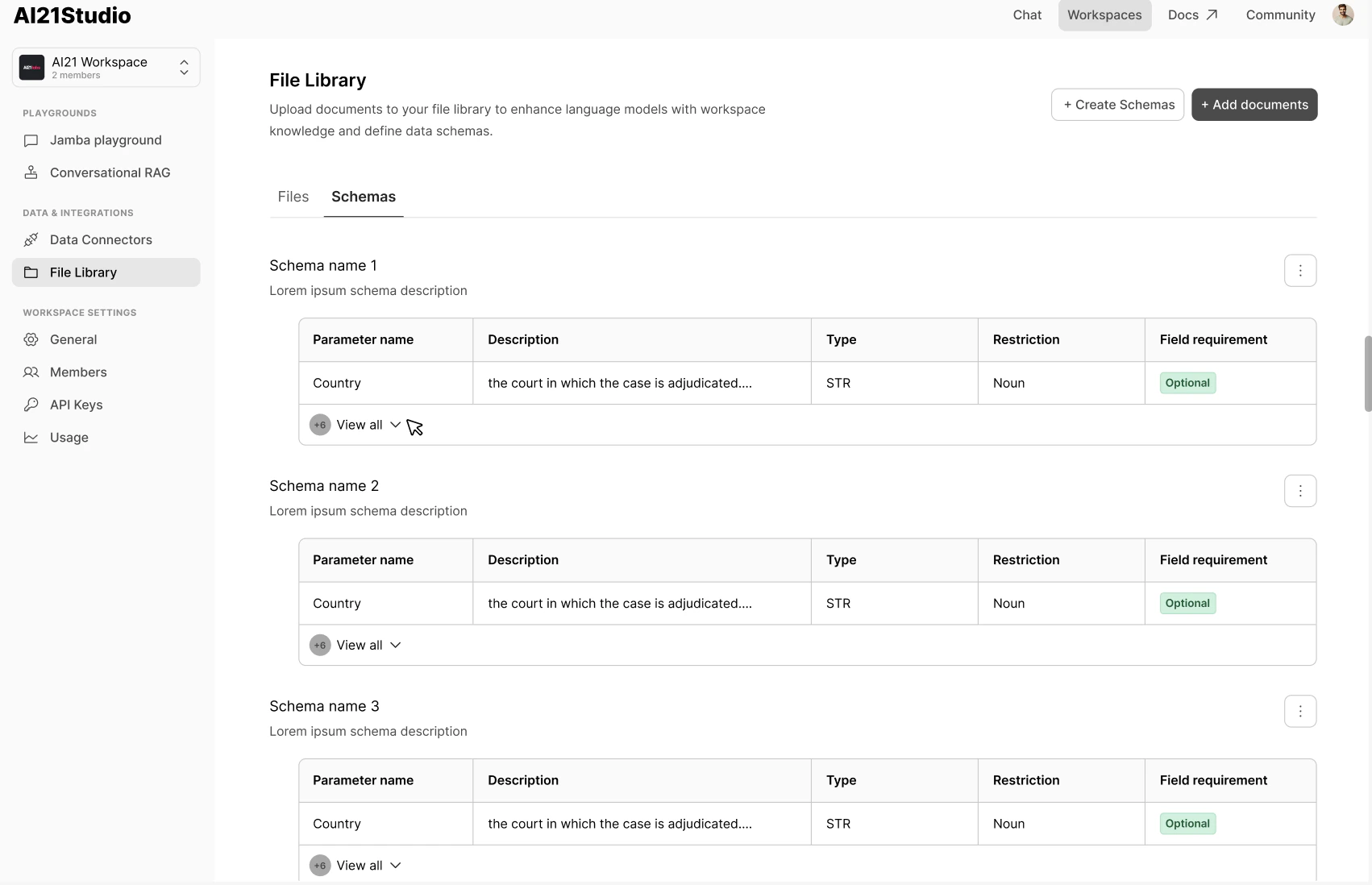

You can manage schemas from the Schema tab.

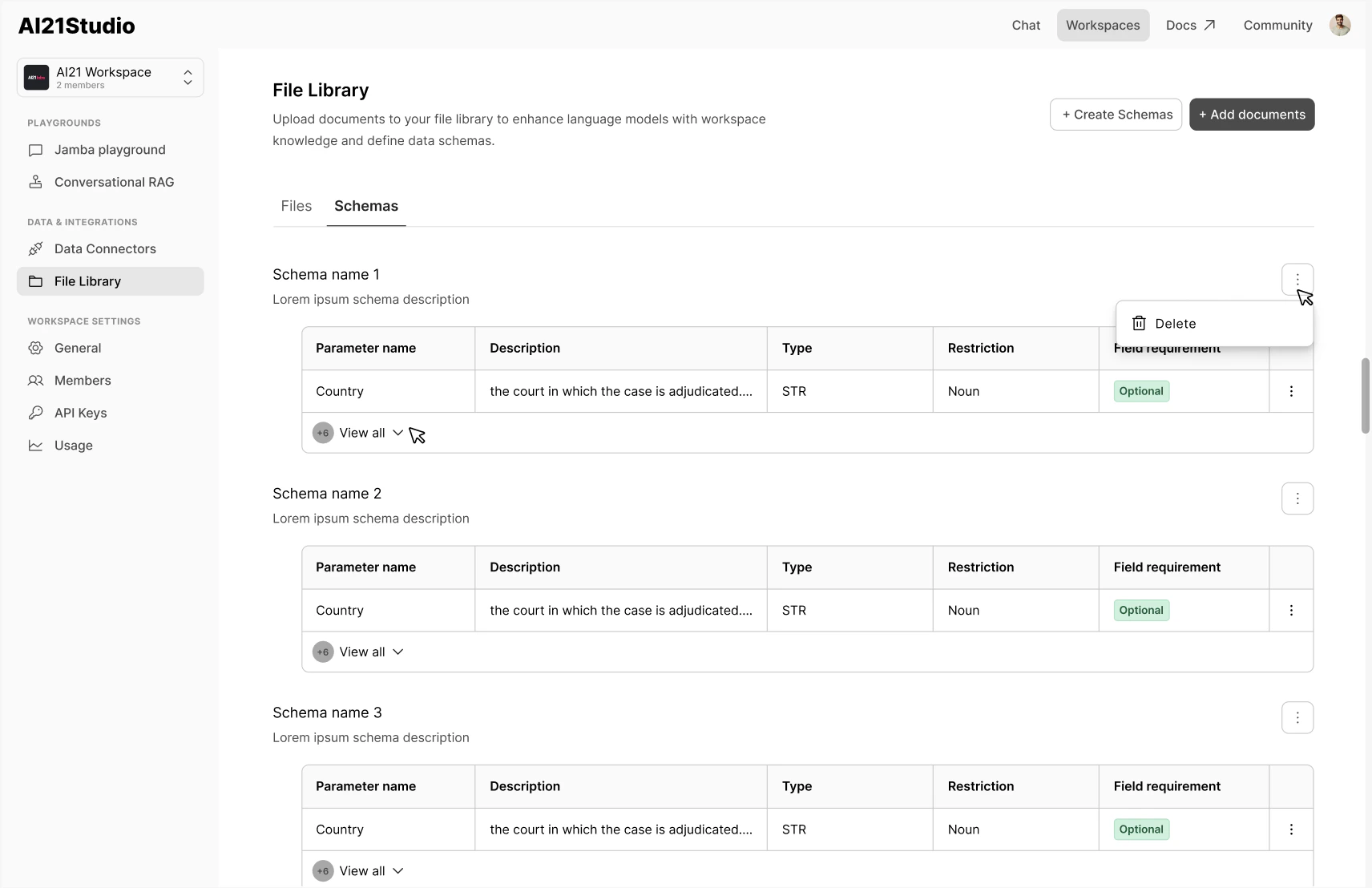

To delete a schema:
To delete a schema:
- Locate the schema you want to remove.
-
Click the ⋯ menu on its row, and then select Delete.
